Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink

Release time:2024-09-23 16:16viewed:times
  • Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink
  • Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink
  • Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink
  • Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink
  • Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink
  • Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink

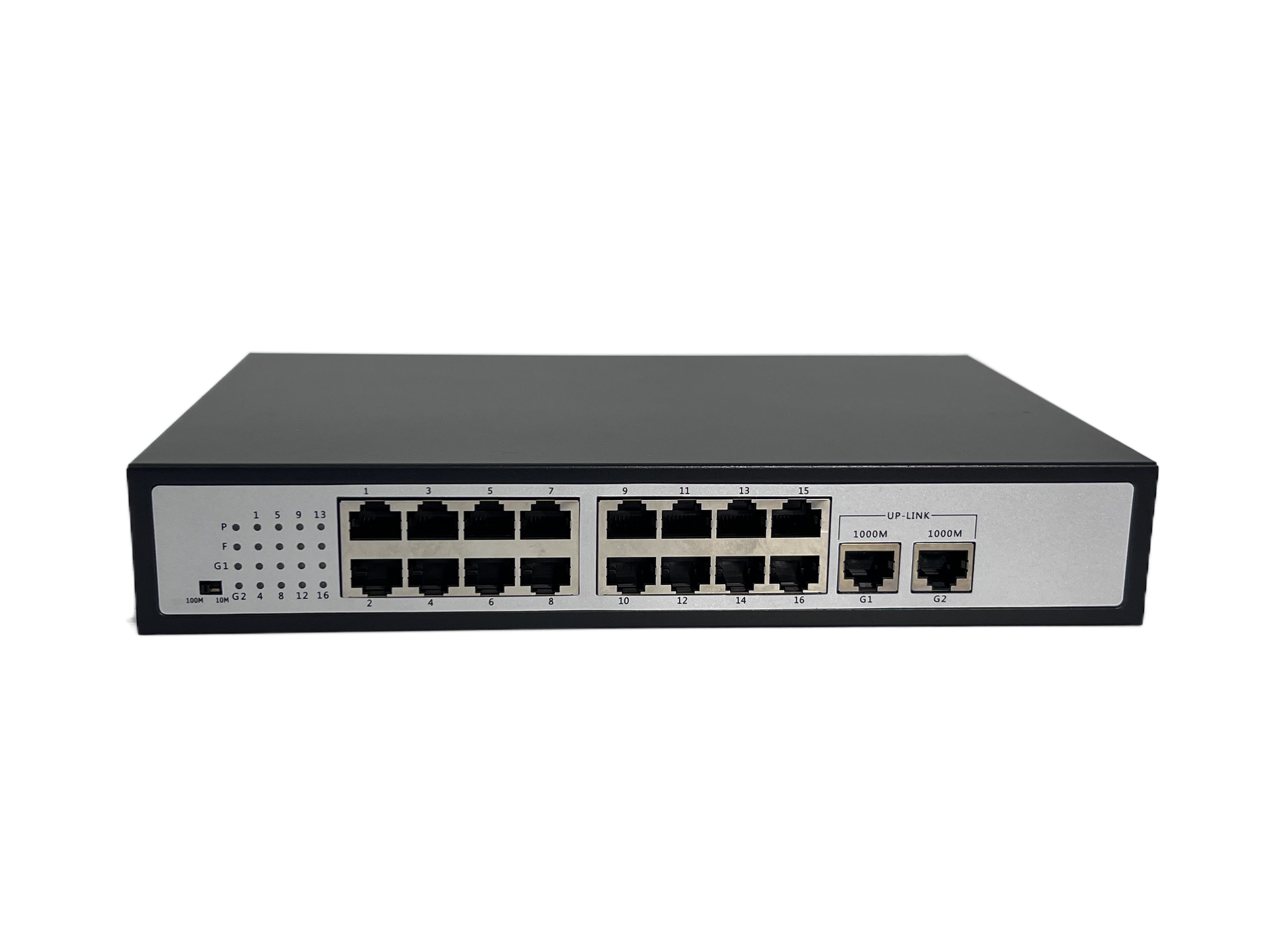

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图1)

Product features:

•  16*10/100 Mbps Auto-Negotiation RJ45 ports with  POE port
    Uplink  2 Port  1000Mbps
• Complies with IEEE802.3af/at standards
• Each port support auto-negotiation-10/20, 100/1000Mbps (Fast Ethernet)
• Bandwidth 1.8Gbps/3.2G/52G
• Supports PoE power up to 15.4W for each PoE port
•Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device
• LED indicators for monitoring power, link,activity and speed
• 48V 2A power adapter,Optional


Model
ATD-POE4+2M
ATD-POE8+2M
ATD-POE16+2M
ATD-POE24+2M
POE port
4
8
16
24
Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
IEEE 802.3af
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af
IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control; IEEE 802.1af DTE Power via MDI
Data Transfer Rate
Ethernet: 10/100 Mbps (Half / Full Duplex)
Ethernet: 10/100 Mbps (Half / Full Duplex)
Ethernet: 10/100 Mbps (Half / Full Duplex)
Ethernet: 10/100 Mbps (Half / Full Duplex)
Forwarding Rate
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
Packet Length is 10Kb, Packet Buffer is 4.1M, Gigabit wire-speed forwarding
Data RAM Buffer
96 K bytes
96 K bytes
96 K bytes
96 K bytes
Power
100-240 V, 50/60 Hz, 2.0A
AC110~265V 50Hz
AC100-240V 50/60Hz
AC100-240V 50/60Hz
Bandwidth

1.8 Gbps
3.2Gbps (non-blocking)
52Gbps bandwidth
Power Consumption
15.4W per each POE port
PoE Max: 60 Watts
15.4W per each POE port
PoE Max: 130Watts
15.4W per each POE port
PoE Max: 380 Watts
15.4W per each POE port
PoE Max: 440 Watts
Temperature
 Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Humidity
Max 90% (non-condensing)
10%~90%,
10%~90%,
10%~90%,
Dimensions
130 x 116 x 30mm
180 x150 x 30mm
485 x 260 x 45 mm
485 x 260 x 45 mm
Weight
0.9kg
2.2kg
4kg
4.3kg

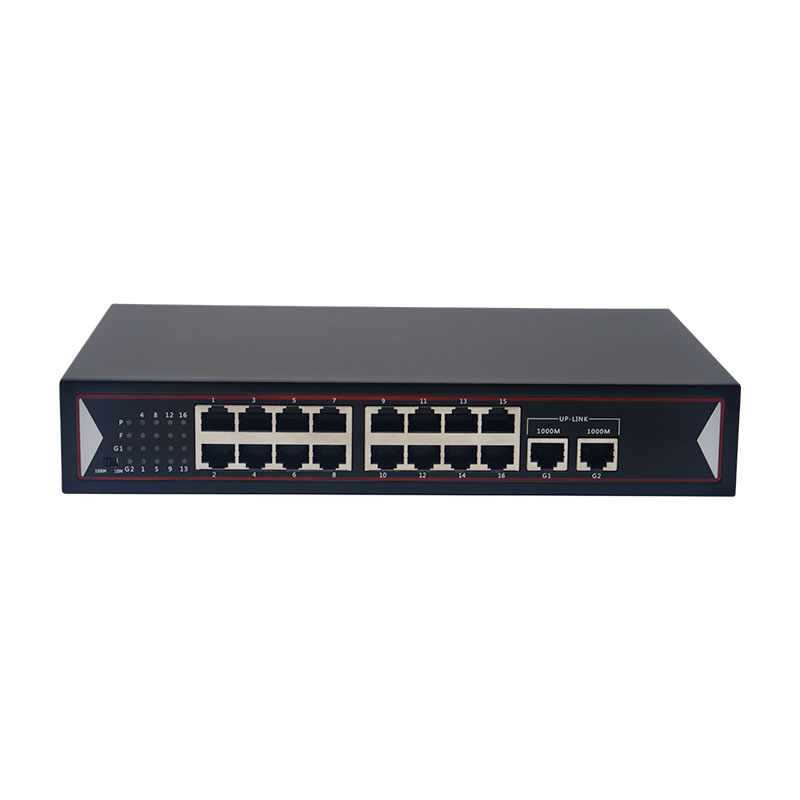

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图2)


Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图3)

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图4)

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图5)

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图6)

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图7)

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图8)

Desktop Type 16+2 port Gigabit POE Switch with 2 port 10/100/1000Mbps Uplink(图9)
