LC 10G Simplex SM SFP

Release time:2024-09-25 17:16viewed:times

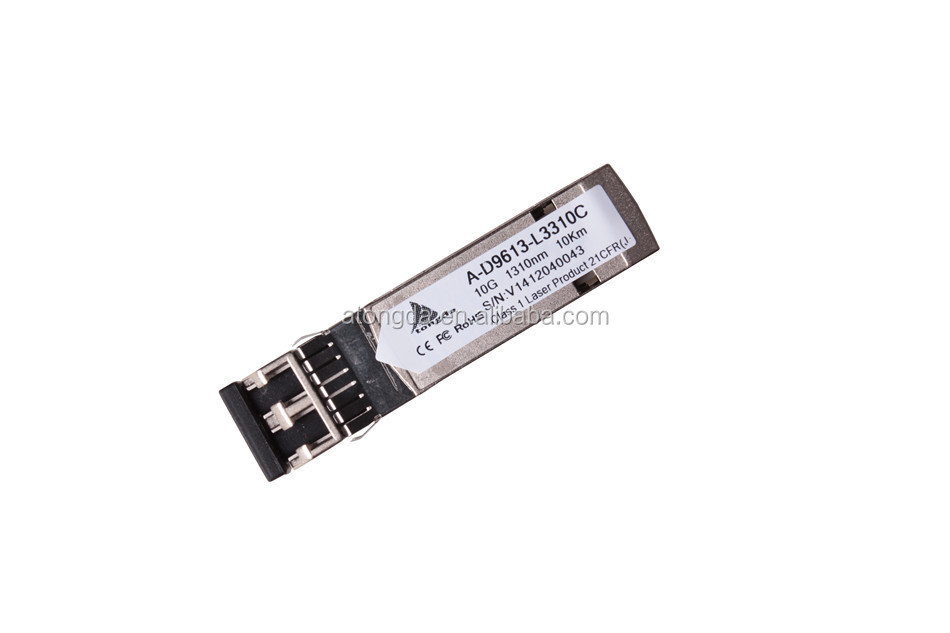

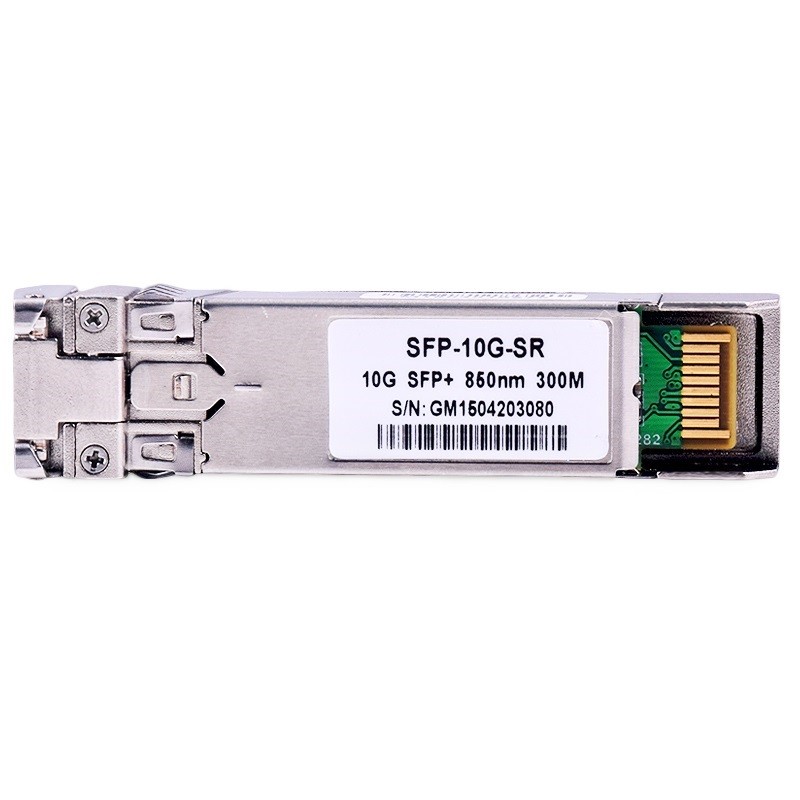

  • LC 10G Simplex SM SFP
  • LC 10G Simplex SM SFP
  • LC 10G Simplex SM SFP
  • LC 10G Simplex SM SFP

1. Feature:

  • SFP package with LC connector
  • 1310nm FP laser and PIN photo detector
  • Up to 20Km transmission on SMF
  • +3.3V single power supply
  • LVPECL compatible data input/output interface
  • Low EMI and excellent ESD protection
  • Laser safety standard IEC-60825 compliant
  • Compatible with RoHS
  • Digital Diagnostic SFF-8472 compliant

2. Application:

  • Ethernet
  • Telecom
  • Fiber Channel

3. Absolute Maximum Ratings:

Parameter

Symbol

Minimum

Maximum

Units

Storage Temperature

Tst

-40

+85

Supply Voltage

Vcc

0

+3.6

V

Operating Relative Humidity

RH

5

95

%



  1. 4. Operation Environment:



Parameter

Symbol

Min

Typical

Max

Units

Supply Voltage

Vcc

3.15

3.3

3.45

V

Operating Case Temperature

Commercial

Tc

0


+70

Industrial

-40


+85

Power Dissipation




1

W

Data Rate



155


Mbps



5. Optical Characteristics:



(Ambient Operating Temperature 0 to +70, Vcc =3.3 V)

Parameter

Symbol

Min.

Typ.

Max.

Units

Transmitter Section

Center Wavelength

lo

1260

1310

1360

nm

Spectral Width(RMS)

Dl

-

-

4

nm

Average Output Power

Po

-15

-

-3

dBm

Extinction Ratio

Er

12

-

18

dB

Rise/Fall Time(20%~80%)

Tr/Tf



0.26

ns

Total jitter

Tj



0.43

UI

Optical Eye Diagram

IEEE 802.3u and ANSI Fibre Channel Compatible

Receiver Section

Center Wavelength

lo

1260


1620

nm

Receiver Sensitivity

Rsen



-34

dBm

Receiver Overload

Rov

-3



dBm

Return Loss


12



dB

LOS Assert

LOSA

-45



dBm

LOS Dessert

LOSD



-34

dBm

LOS Hysteresis


0.5


5




6. Ordering information :

A-D0303-L3320C

Commercial

0~70

A-D0303-L3320C

Industrial

-40~85
